Avalon Bus : PWM

Development Environment.

Program : Quartus Prime 18.1 Lite Edition, Eclipse Mars.2 Release(4.5.2)

Tool : Modelsim 10.5b Starter Edition

FPGA : Cyclone V

Hardware Devices : De1-SoC Board.

Language : Verilog2001.

---

Objective.

Control PWM and adjust LED brightness through Avalon Interface.

---

Why?

PWM은 Pulse Width Modulation의 약어로 period와 duty ratio를 조절하여 HIGH, LOW 상태에 따른 Pulse의 폭을 조절한다. 이를 활용하여 LED, Power 또는 Motor의 속도 등을 제어할 수 있으며 이산 신호를 다루는 디지털 회로에서 아날로그 신호를 모방할 수 있게 된다.

---

Design step.

1. Block Diagram.

2. Verilog code with Avalon interface.

3. Modelsim Simulation.

4. verification with De1-SoC Board.

---

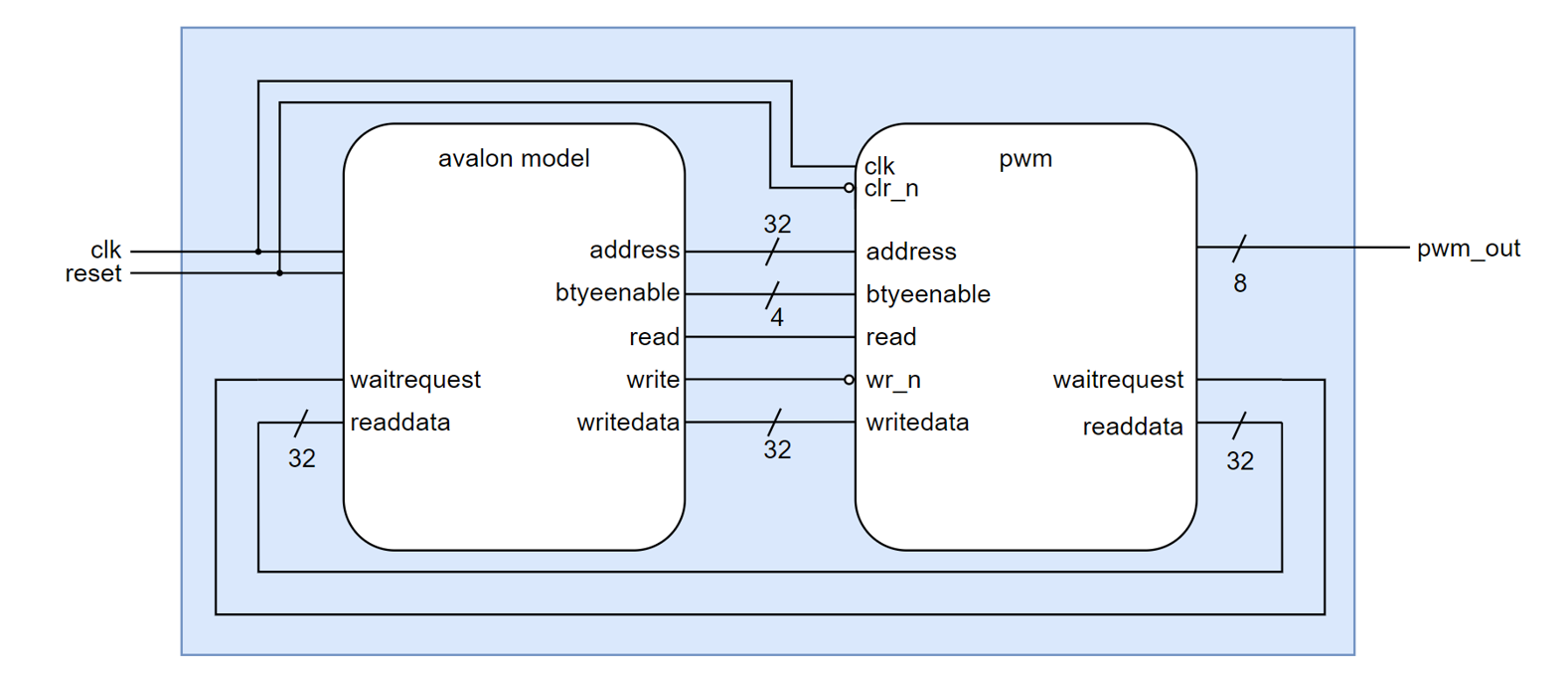

1. Block Diagram.

Pulse Width Modulation



Byteenable에 맞게 div, duty reg 선언, 출력을 각 비트별로 받을 수 있도록 off 선언, div와 duty의 입력 데이터 활성화 신호 divide, duty enable 선언, enable은 write_n과 address로 출력. div와 duty 데이터만큼 동작하는 counter 설계.

---

1. Verilog Code with Avalon Interface.



module pwm (
   input               clk         ,
   input               clr_n       ,
   input      [31:0]   address     ,
   input      [ 3:0]   byteenable  ,
   input               read        ,
   input               write_n     ,
   input      [31:0]   writedata   ,
   output              waitrequest ,
   output     [31:0]   readdata    ,
   output     [ 7:0]   pwm_out
);

   reg    [ 7:0]    div3, div2, div1, div0;
   reg    [ 7:0]   duty3,duty2,duty1,duty0;

   reg    [31:0]   counter;
   reg             off;
   reg    [31:0]   rd_data;

   wire             div3_ena, div2_ena, div1_ena, div0_ena;
   wire            duty3_ena,duty2_ena,duty1_ena,duty0_ena;

   always@(posedge clk, negedge clr_n)begin
      if(!clr_n)begin
         div3  <= 0;
         div2  <= 0;
         div1  <= 0;
         div0  <= 0;
         duty3 <= 0;
         duty2 <= 0;
         duty1 <= 0;
         duty0 <= 0;
      end
      else begin
         if(div3_ena)
            div3 <= writedata[31:24];
         else
            div3 <= div3;
         if(div2_ena)
            div2 <= writedata[23:16];
         else
            div2 <= div2;
         if(div1_ena)
            div1 <= writedata[15: 8];
         else
            div1 <= div1;
         if(div0_ena)
            div0 <= writedata[ 7: 0];
         else
            div0 <= div0;

         if(duty3_ena)
            duty3 <= writedata[31:24];
         else
            duty3 <= duty3;
         if(duty2_ena)
            duty2 <= writedata[23:16];
         else
            duty2 <= duty2;
         if(duty1_ena)
            duty1 <= writedata[15: 8];
         else
            duty1 <= duty1;
         if(duty0_ena)
            duty0 <= writedata[ 7: 0];
         else
            duty0 <= duty0;
      end
   end

   always@(posedge clk, negedge clr_n)begin
      if(!clr_n)
         counter <= 0;
      else if(counter >= {div3, div2, div1, div0})
         counter <= 0;
      else
         counter <= counter + 1;
   end

   always@(posedge clk, negedge clr_n)begin
      if(!clr_n)
         off <= 0;
      else if(counter >= {duty3, duty2, duty1, duty0})
         off <= 1;
      else if(counter == 0)
         off <= 0;
      else
         off <= off;
   end

   always@(address or div3 or div2 or div1 or div0 or duty3 or duty2 or duty1 or duty0) begin
      if(!address)
         rd_data <= { div3,  div2,  div1,  div0};
      else
         rd_data <= {duty3, duty2, duty1, duty0};
   end

   assign readdata = rd_data;

   assign div3_ena  = !write_n & !address;
   assign div2_ena  = !write_n & !address;
   assign div1_ena  = !write_n & !address;
   assign div0_ena  = !write_n & !address;
   assign duty3_ena = !write_n &  address;
   assign duty2_ena = !write_n &  address;
   assign duty1_ena = !write_n &  address;
   assign duty0_ena = !write_n &  address;
   assign pwm_out[0] = !off;
   assign pwm_out[1] = !off;
   assign pwm_out[2] = !off;
   assign pwm_out[3] = !off;
   assign pwm_out[4] = !off;
   assign pwm_out[5] = !off;
   assign pwm_out[6] = !off;
   assign pwm_out[7] = !off;

endmodule

---

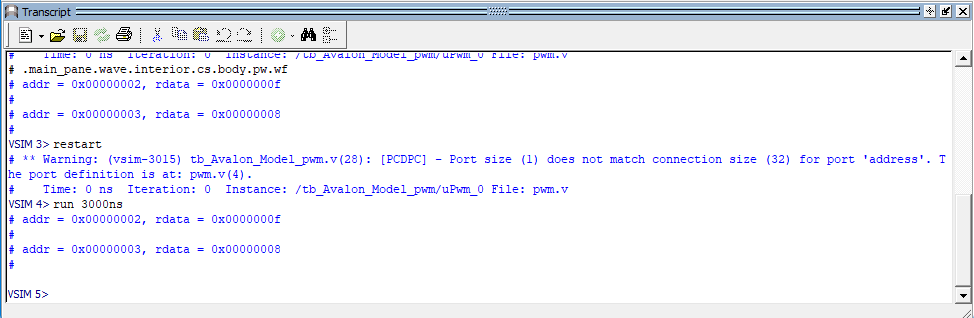

2. Modelsim Simulation.



`timescale 1 ns / 1 ns

module tb_Avalon_Model_pwm();
   reg            clk         ;
   reg            reset       ;

   wire  [31:0]   address     ;
   wire  [ 3:0]   byteenable  ;
   wire           read        ;
   wire           write       ;
   wire           waitrequest ;
   wire  [31:0]   readdata    ;
   wire  [31:0]   writedata   ;
   wire  [ 7:0]   pwm_out     ;

   Avalon_Model uAvalon_Model_0(   //   Avalon_Write(32'h0000, 32'hf);
      .clk        (clk        ),   //   Avalon_Write(32'h0001, 32'h8);
      .reset      (reset      ),   //   Avalon_Read(32'h0002);
      .address    (address    ),   //   Avalon_Read(32'h0003);
      .byteenable (byteenable ),
      .read       (read       ),
      .write      (write      ),
      .waitrequest(waitrequest),
      .readdata   (readdata   ),
      .writedata  (writedata  )
   );

   pwm uPwm_0 (
      .clk        (clk        ),
      .clr_n      (!reset     ),
      .address    (address    ),
      .byteenable (byteenable ),
      .read       (read       ),
      .write_n    (!write     ),
      .writedata  (writedata  ),
      .waitrequest(waitrequest),
      .readdata   (readdata   ),
      .pwm_out    (pwm_out    )
   );

   initial fork
      clk_gen_task();
      reset_task();
   join

   task clk_gen_task;
      begin
         clk = 1'b0;
         forever #10 clk = ~clk;
      end
   endtask

   task reset_task;
      begin
         reset = 1'b0;
         repeat(1) @(posedge clk);
         reset = 1'b1;
         repeat(1) @(posedge clk);
         reset = 1'b0;
      end
   endtask

endmodule



vlib work
vlog Avalon_Model.v tb_Avalon_Model_pwm.v pwm.v
vsim work.tb_Avalon_Model_pwm
view wave

add wave -radix unsigned /clk
add wave -radix unsigned /reset
add wave -radix unsigned /address
add wave -radix unsigned /byteenable
add wave -radix unsigned /read
add wave -radix unsigned /write
add wave -radix unsigned /waitrequest
add wave -radix hex      /readdata
add wave -radix hex      /writedata
add wave -radix unsigned /pwm_out
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/counter
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/clr_n
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/writedata
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/off
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/write_n
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/address
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/div3
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/div2
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/div1
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/div0
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/duty3
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/duty2
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/duty1
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/duty0
add wave -radix unsigned /tb_Avalon_Model_pwm/uPwm_0/pwm_out

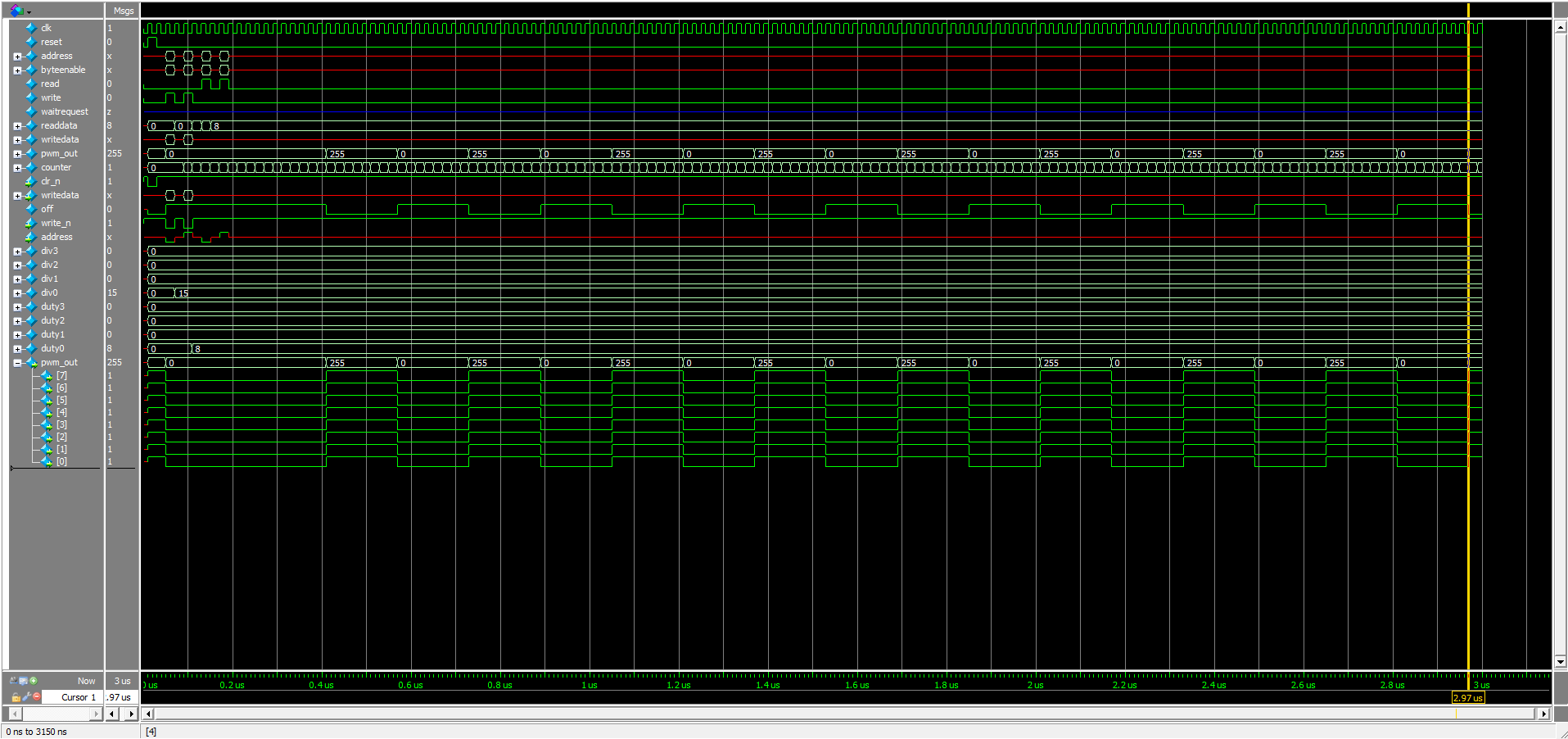

run 1000 ns

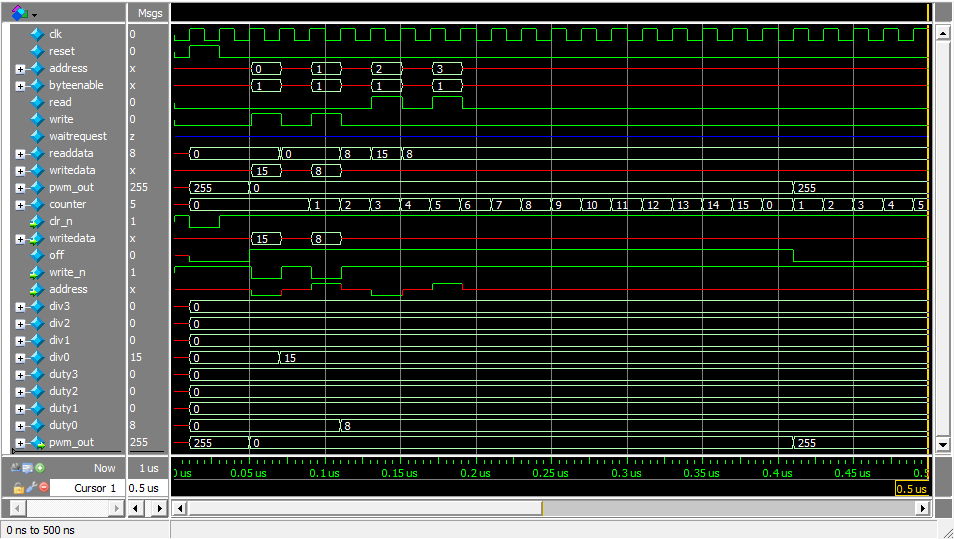

0 - 500ns

500 - 1000ns



---

3. Verification with De1-SoC Board & Eclipse.

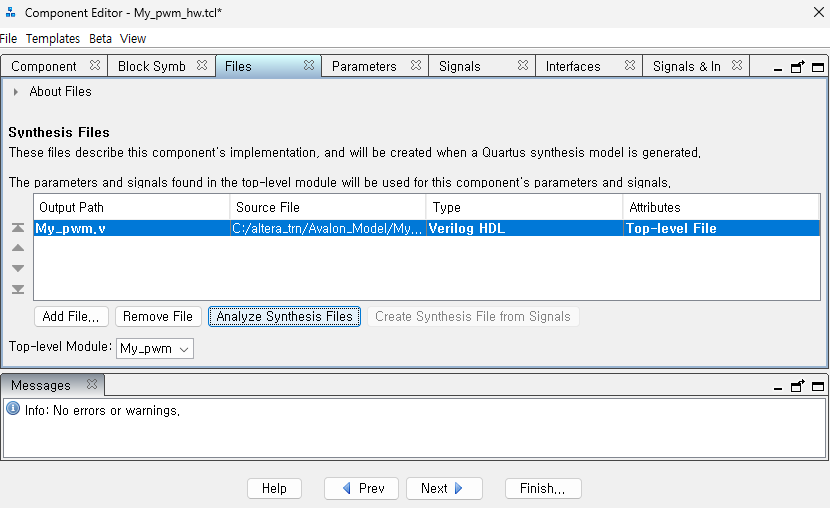

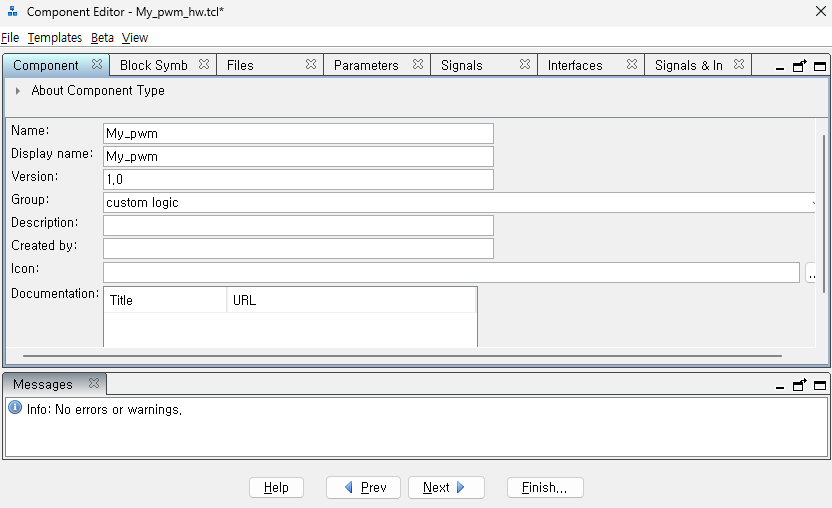

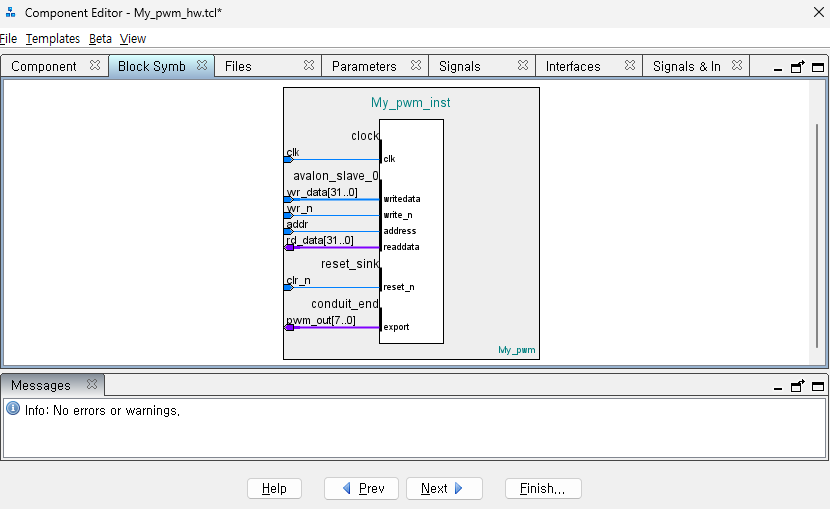

1) Add Custom Component.

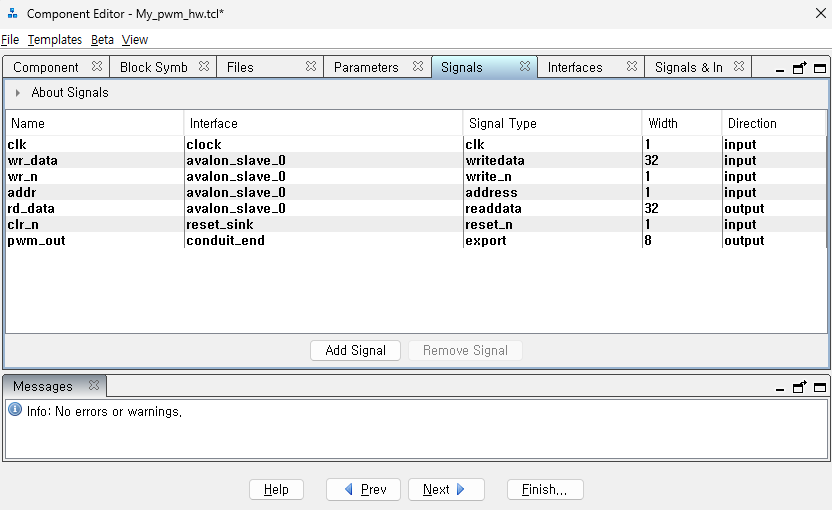

Top-level Module, Signal Type, Interface 설정에 주의

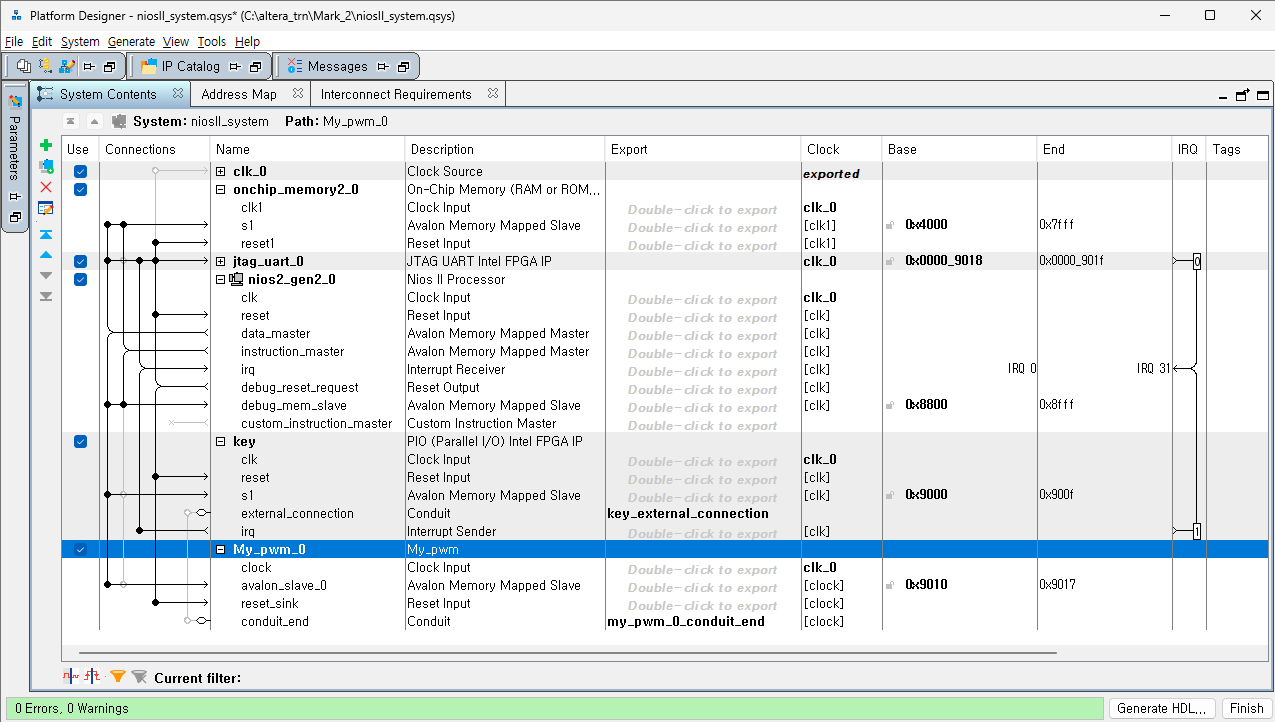

2) System Configuration.

Clk, CPU(Nios II Processor), Memory, JTAG(Debugging), My_pwm_0(Custom Component), Key(PIO)

Platform Designer

Generate HDL > create sopcinfo, qip File.



3) Compilation.

1. 프로젝트에 qip File 추가하고 Platform Designer의 Instantation Template Copy 후 Analysis & Synthesis.



module Mark_2 (
   input          clk      ,
   input          reset_n  ,
   input  [3:0]   key      ,
   output [7:0]   pwm_out
);
   niosII_system niosII_system_u0 (
      .clk_clk                        (clk    ),
      .key_external_connection_export (key    ),
      .reset_reset_n                  (reset_n),
      .my_pwm_0_conduit_end_export    (pwm_out)
   );
endmodule

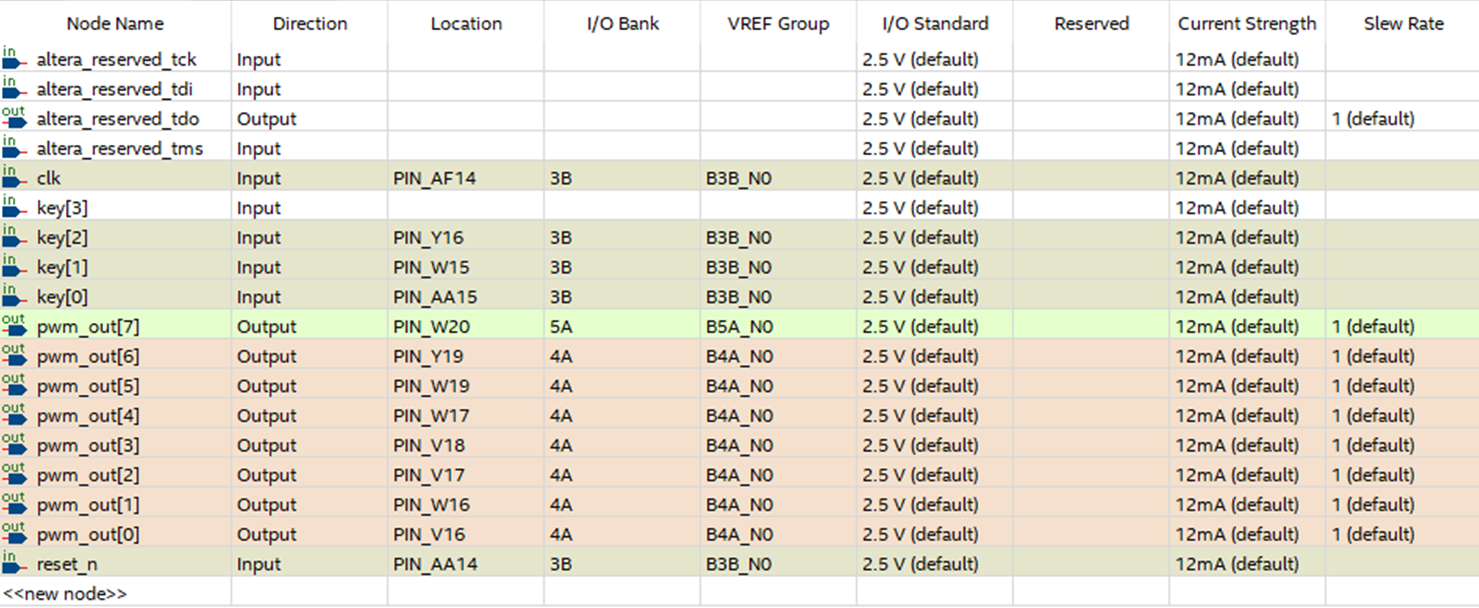

2. Pin Planner Setting

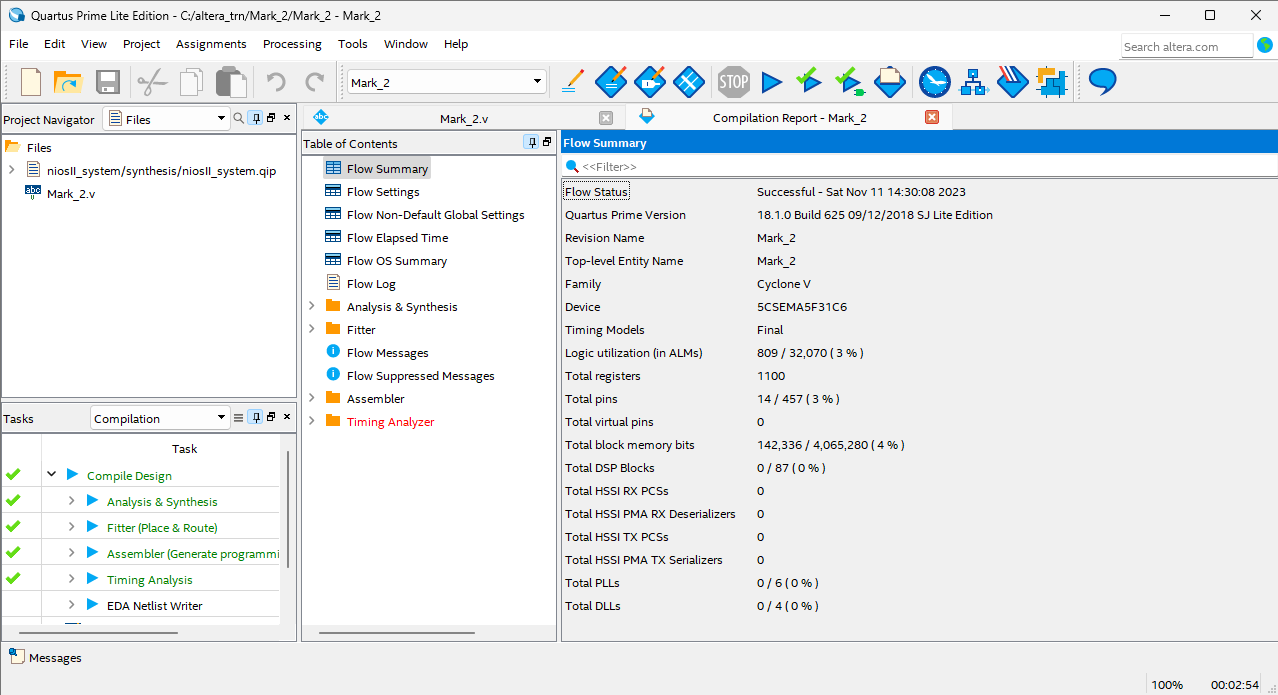

3. Full Compilation.

Compilation > Assembler > create .sof

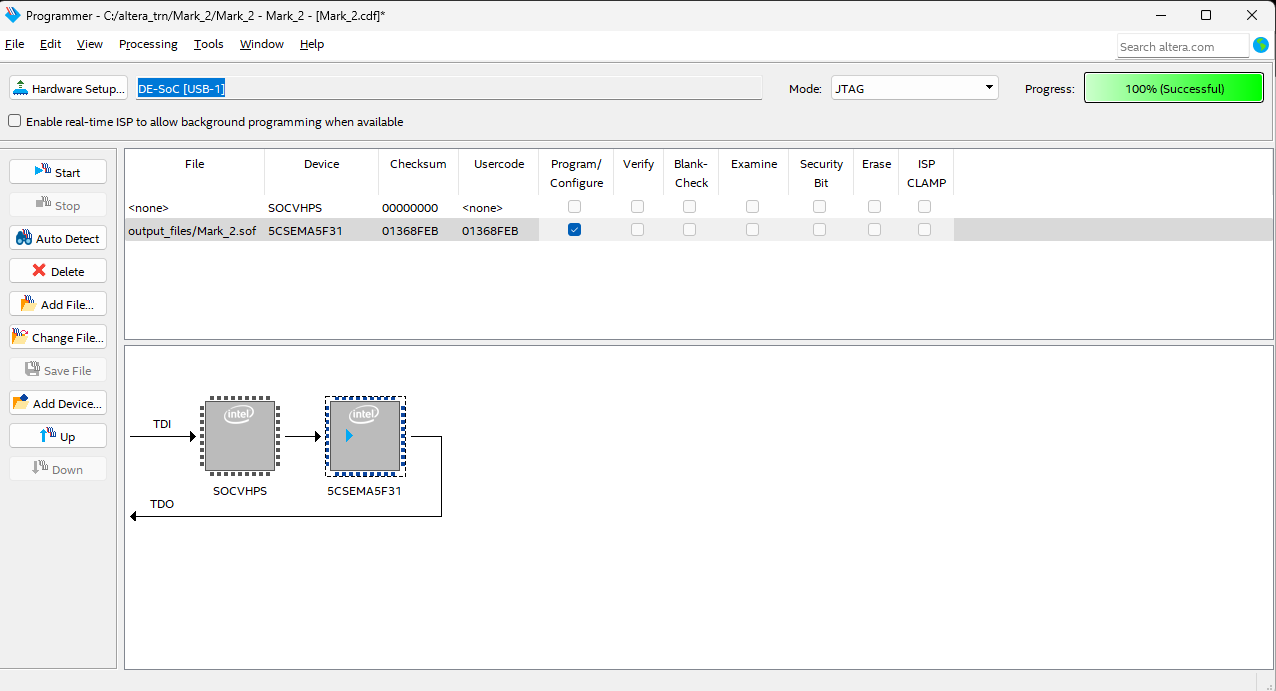

4) Programmer.

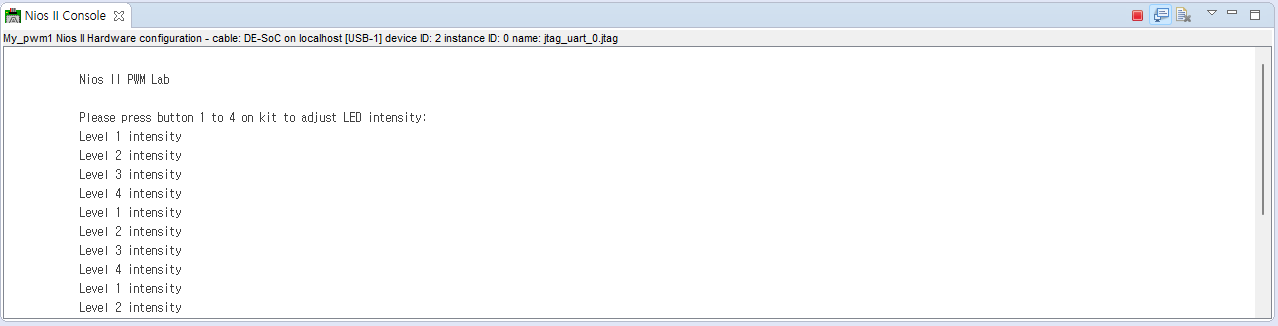

5) Verification with Eclipse.



#include <stdio.h>
#include "altera_avalon_pio_regs.h"
#include "altera_avalon_pwm_regs.h"
#include "system.h"

int main()
{
   unsigned char v;

   IOWR_ALTERA_AVALON_PWM_DIVIDER(MY_PWM_0_BASE,0xFF);
   IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0xFF);

   printf("LET'S GI RIT!");
   v = 0;
   while (1){
      IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,v);
         v++;
         usleep(2000);
   }
   return 0;
}







#include <stdio.h>
#include "altera_avalon_pio_regs.h"
#include "altera_avalon_pwm_regs.h"
#include "system.h"

#define NONE_PRESSED 0xF
#define DEBOUNCE 30000

int main()
{
   int buttons, button_val;
   int print_cnt;

   IOWR_ALTERA_AVALON_PWM_DIVIDER(MY_PWM_0_BASE,0xFF);
   IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0xFF);

   printf("\n\tNios II PWM Lab\n\n");
   printf("\tPlease press button 1 to 4 on kit to adjust LED intensity:\n");

   button_val = 0;
   while (1)
   {
      print_cnt = 0;
      buttons = IORD_ALTERA_AVALON_PIO_DATA(KEY_BASE);

      if(buttons != NONE_PRESSED)  {
         usleep (DEBOUNCE);
         while (buttons != NONE_PRESSED)  {
            buttons = IORD_ALTERA_AVALON_PIO_DATA(KEY_BASE);
         }

      usleep (DEBOUNCE);
      button_val++;

         if(button_val > 3) {
            button_val = 0;
         }
         print_cnt = 1;
      }

   switch (button_val)  {
      case 0:
         IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0xcc);
         if (print_cnt == 1)
            printf("\tLevel 4 intensity\n");
         break;
      case 3:
         IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0x99);
         if (print_cnt == 1)
            printf("\tLevel 3 intensity\n");
         break;
      case 2:
         IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0x66);
         if (print_cnt == 1)
            printf("\tLevel 2 intensity\n");
         break;
      case 1:
         IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0x33);
         if (print_cnt == 1)
            printf("\tLevel 1 intensity\n");
         break;
      default:
         IOWR_ALTERA_AVALON_PWM_DUTY(MY_PWM_0_BASE,0xFF);
         break;
      }
   }
   return 0;
}
